產品詳情

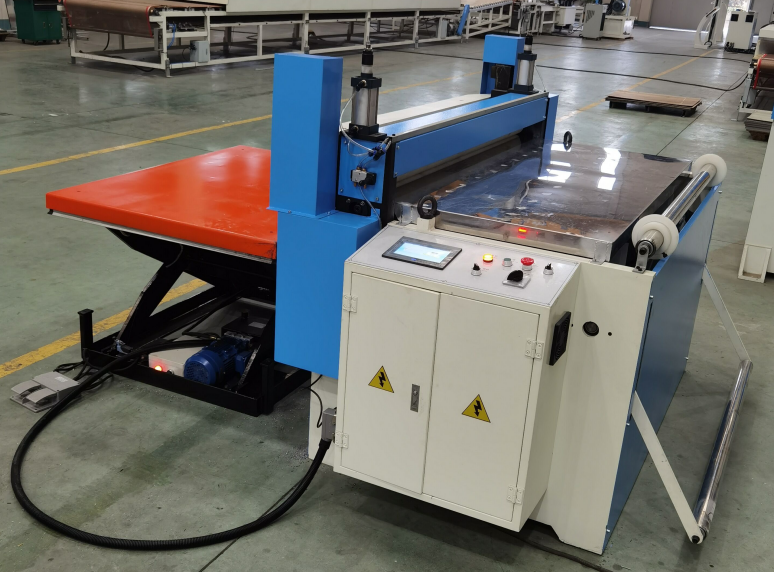

XYJ－6 自動切片機 Automatic shearing & cutting machine
本機適用于彈性地板、地板彩膜、塑料、紙板等不同材料的批量、連續剪切工作。
It is suitable for batch and continuous shearing & cutting of different materials, such as resilient flooring, floor color film, plastic, cardboard and etc..
切片機 Shearing& cutting machine | 電動升降臺 Electric lifting platform | ||
切刀寬度 Blade width | 1500 | 載重（Ton） Max. load | 3 |
刀片開口 Blade opening height | 10－120 | 油缸行程 Max. stroke of oil cylinde | 800 |
切刀速度(m/s) Blade speed | 0－0.20 | 點(mm) Lowest position | 240 |
切片厚度 Thickness of workpiece | 0.05－6 | 點(mm) Highest position | 1040 |
送料電機功率(kW) Feeding motor power | 2.3 | 工作臺面尺寸 Worktable size | 1400x1100 |
主電機功率(kW) Main motor power | 3.7 | 電機功率(kW) Motor power | 2.2 |
